Apeks Regulator Package: MTX-R + Miflex Gauges + BCD Hose

There are cold-water regulators, and then there is the Apeks MTX-R. Developed from the MTX — a regulator built in direct collaboration with the United States Navy Experimental Dive Unit for extreme cold-water testing — the MTX-R brings that same military-grade engineering pedigree to recreational diving. The "M" stands for Military. The "R" stands for recreational. The result is one of the most capable cold-water regulators available to consumer divers anywhere in the world. Paired with the Miflex Black Faced Tech SPG and a Miflex BCD hose, this package gives you a complete, battle-hardened breathing system ready to connect straight to your existing rig.

At the heart of the package is the Apeks MTX-R Regulator Set, designed and manufactured in the UK. The first stage is built around a breakthrough over-moulded endcap and environmental diaphragm — an innovative design that prevents ice build-up in extreme cold, the primary cause of first-stage free-flows in near-freezing water, while also protecting the first stage from impact damage. A ribbed diaphragm clamp adds further heat exchange performance, and the unique over-balanced diaphragm design delivers increasing medium pressure gas at a faster rate than ambient as you descend, giving you superior breathing at depth. Five medium-pressure ports — including a fifth with a protective bumper when not in use — and two angled high-pressure ports provide full flexibility for hose routing and transmitter fitting. A double swivel hose adds freedom of movement, and an easy one-hand-release DIN handwheel or over-moulded yoke handwheel makes tank changes straightforward even in thick gloves. Nitrox and oxygen compatible up to 40% O2, and fully tested for octopus use to EN250A at 60 metres in cold water. The second stage is equally well considered — an oversized breathing effort adjuster and large self-flushing purge button are both designed for use with gloves on, while large elastomer bumpers protect the most vulnerable points from impacts and scratches. A patented heat exchanger draws in the warmth of ambient water to offset the cold caused by gas expansion, delivering a noticeably more comfortable breathe in cold conditions. The reversible design accommodates left or right-hand gas supply, and a flexible nylon braided hose, double swivel and Comfo-bite mouthpiece complete a second stage engineered for serious, repeated use. No single-use plastic in the packaging.

Completing the breathing system is the Apeks MTX-R Octopus, built to the same exacting cold-water standard as the primary second stage. Highly visible and straightforward to operate, it provides a reliable backup air source your buddy can reach for with confidence.

Connecting your regulator to your BCD is the Miflex Xtreme BCD Hose, fitted with a standard 3/8" quick-release coupler suitable for most BCDs, wings and drysuits. Flexible, lightweight and flow-rate tested to EN 1809:2014 standards, it routes cleanly and reliably across any setup.

Finally, choose your gauge setup:

• Miflex SPG fitted with 80cm Carbon HD hose: lightweight, compact and uncomplicated
• Miflex Double Console with Depth Gauge and SPG: pressure gauge + depth gauge in a compact, easy-to-read console

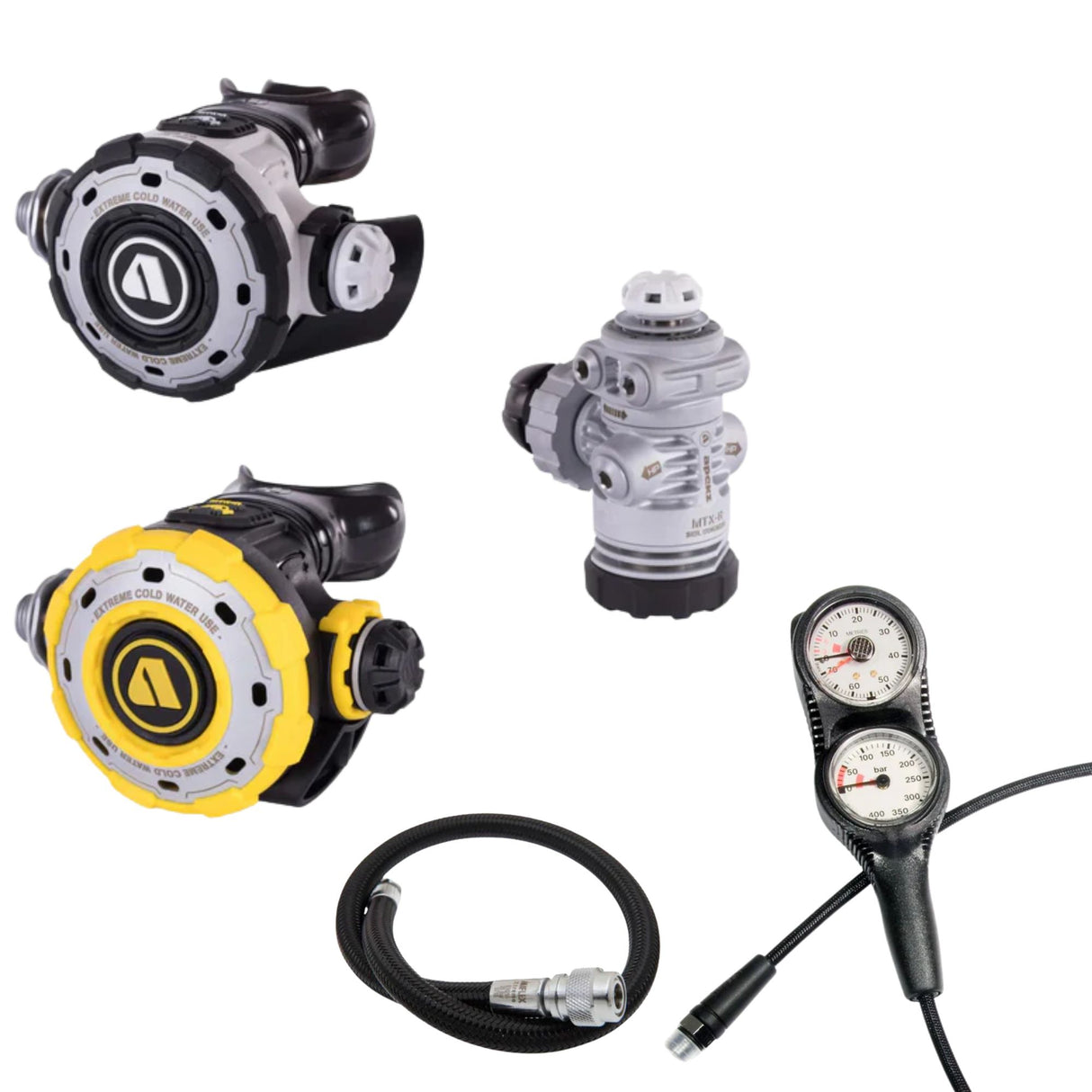

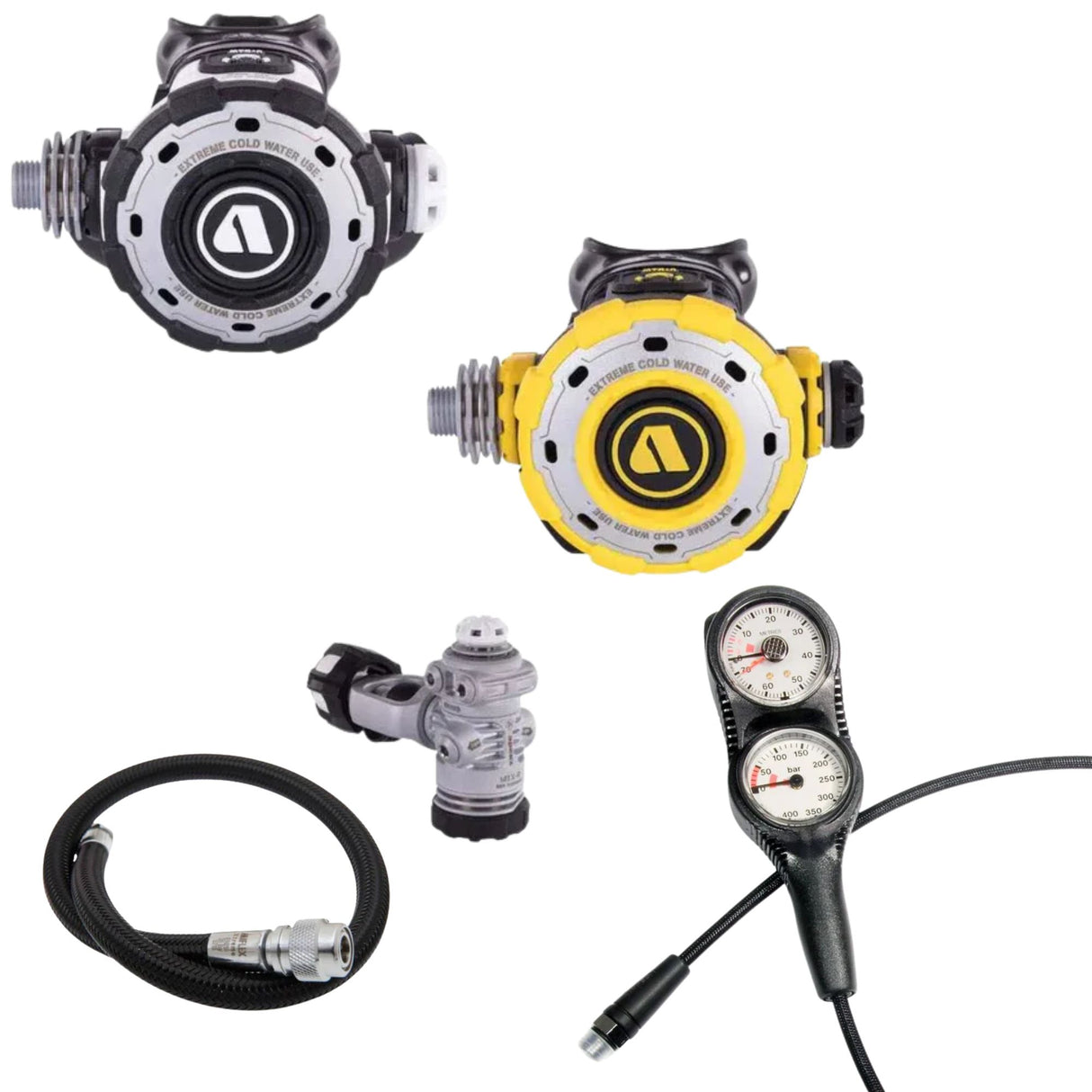

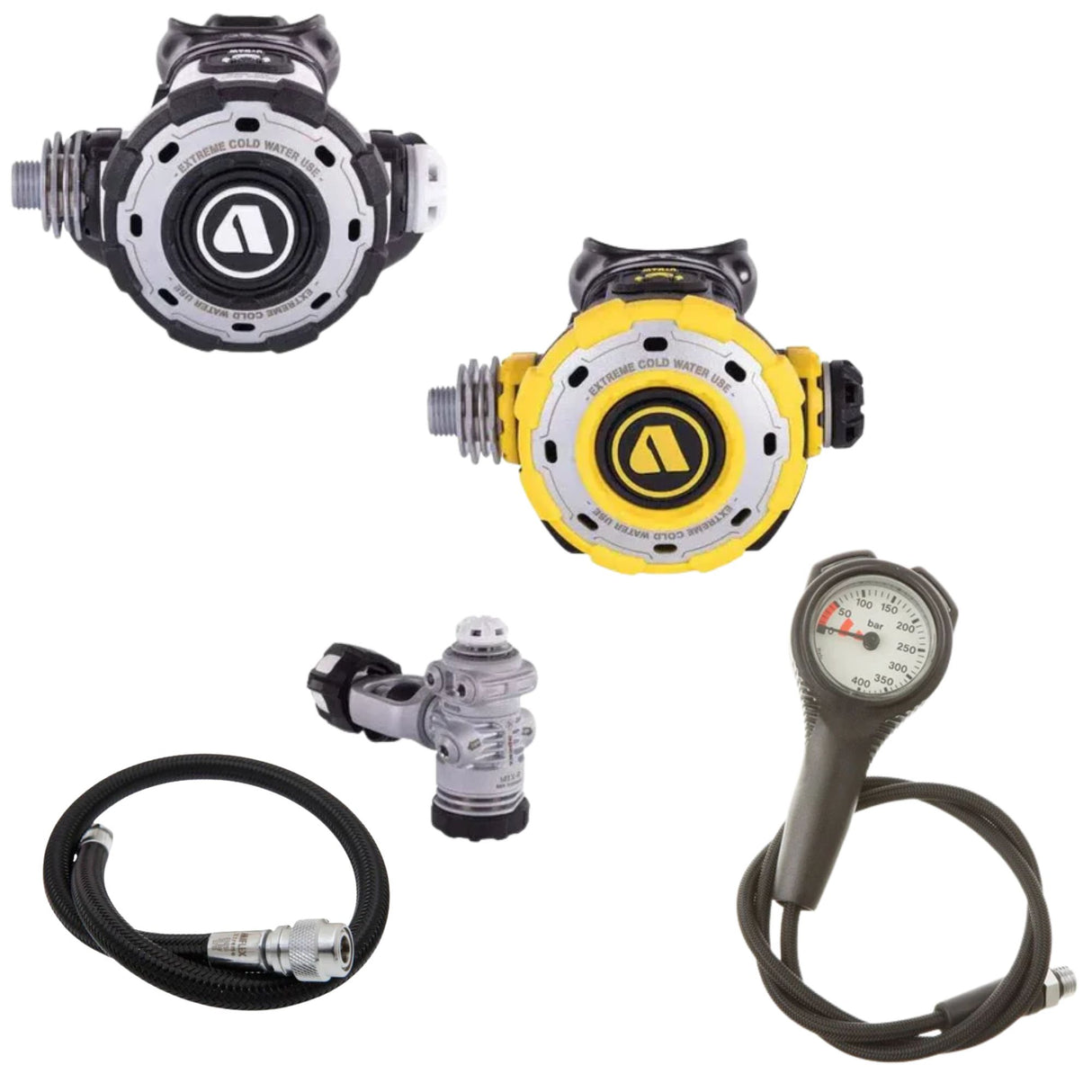

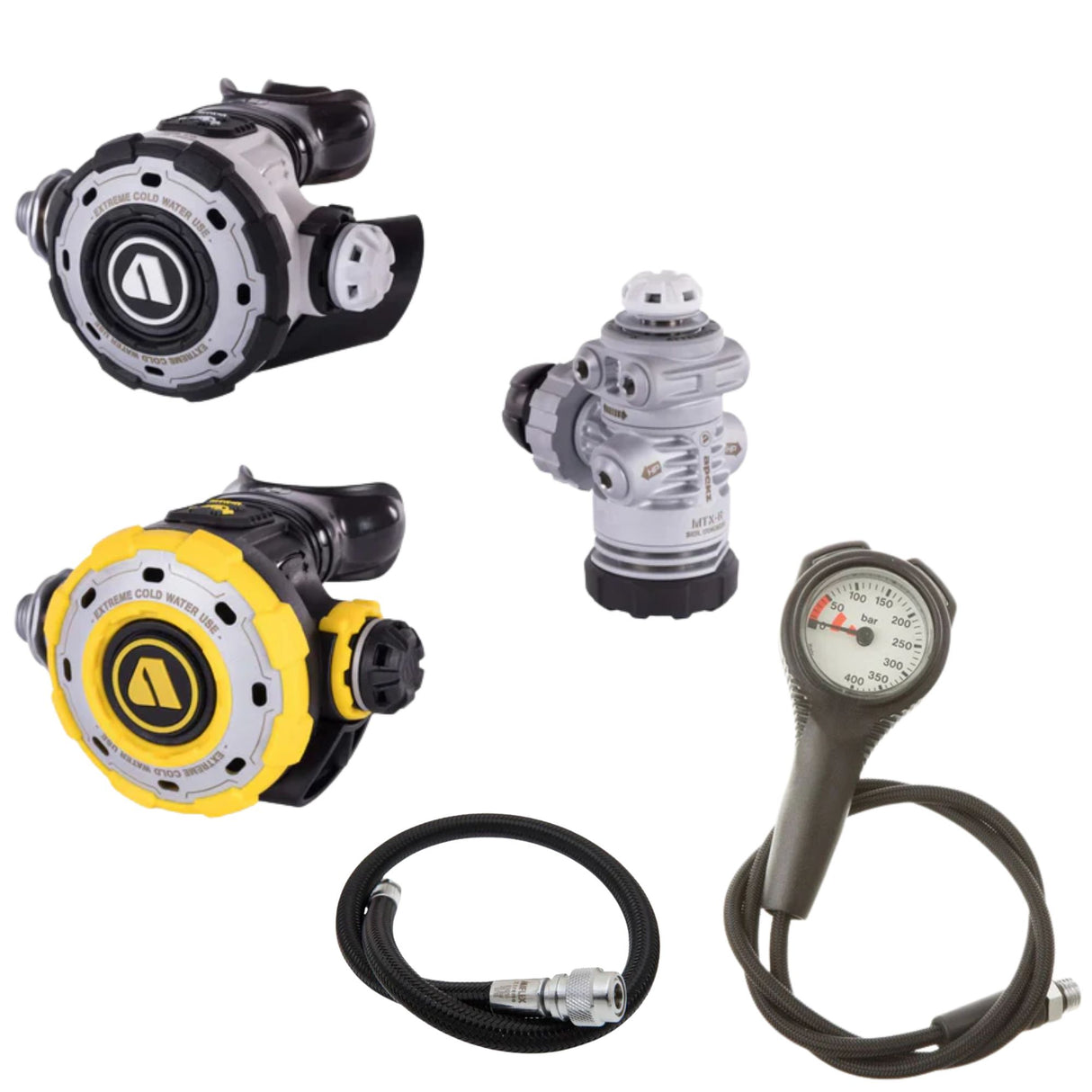

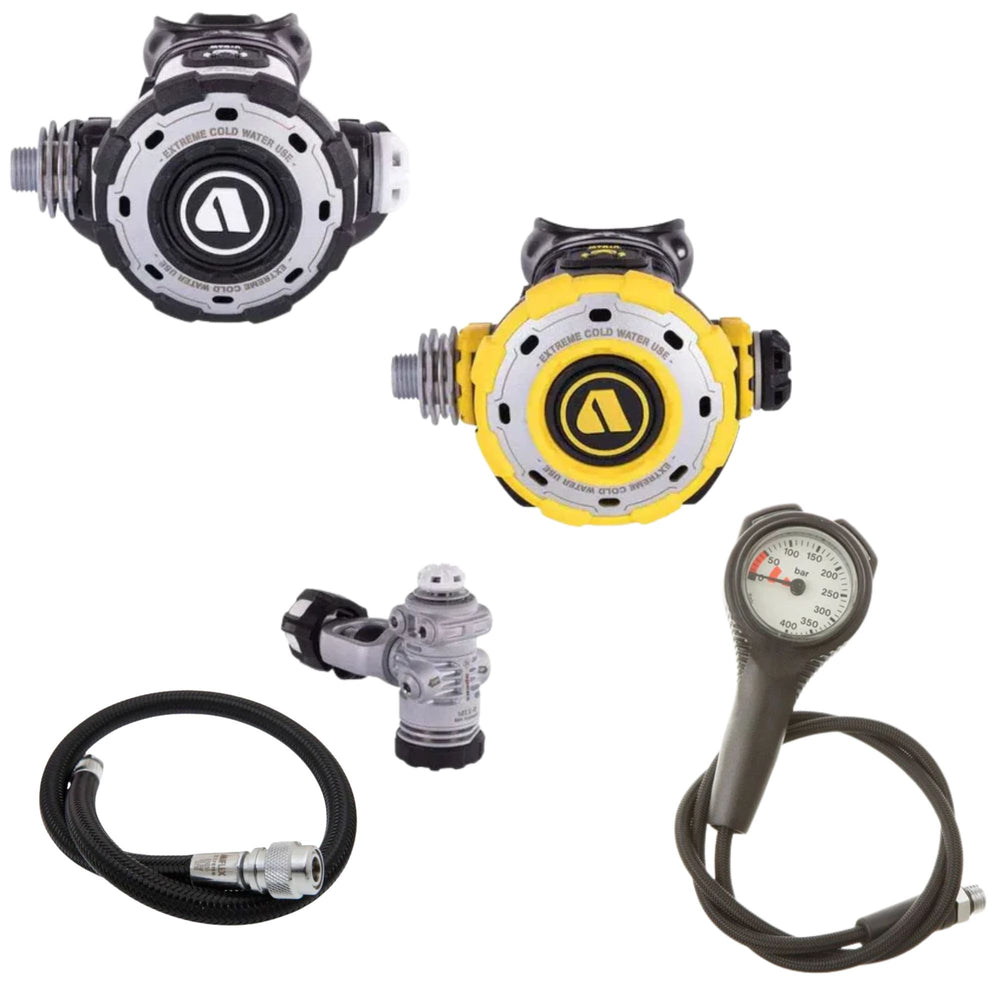

Package includes:

• Apeks MTX-R Regulator Set (First Stage, Second Stage + Octopus)
• Miflex  SPG or Double Console

• Miflex Xtreme BCD Hose

Why you'll love it:

• Developed from the MTX — a regulator built to US Navy Experimental Dive Unit extreme cold-water specifications
• Breakthrough over-moulded endcap and environmental diaphragm actively prevents ice build-up in near-freezing water
• Over-balanced diaphragm first stage delivers superior breathing performance as you descend
• Ribbed diaphragm clamp adds further heat exchange performance in cold-water conditions
• Patented heat exchanger second stage draws in ambient warmth for a noticeably more comfortable breathe
• Oversized breathing effort adjuster and large purge button designed for use with gloves on
• Large elastomer bumpers protect the second stage from impacts and scratches
• Reversible second stage configures for left or right-hand gas supply
• Tested for octopus use to EN250A — 60 metres, cold water
• Nitrox/oxygen compatible up to 40% O2
• Miflex BCD hose connects cleanly and reliably, flow-rate tested to EN 1809:2014 standards
• Choose your preferred instrument setup: keep it simple with an  SPG or add depth with a Double Console
• Designed and manufactured in the UK — no single-use plastic in the packaging

Key Feature Highlights:

Apeks MTX-R First Stage Features:

• Breakthrough over-moulded endcap and environmental diaphragm prevents ice build-up and protects from impact damage
• Ribbed diaphragm clamp for improved heat exchange in cold water
• Unique over-balanced diaphragm design for superior breathing performance at depth
• 5 medium-pressure ports (3/8" UNF) — 5th port includes a protective bumper when not in use
• 2 angled high-pressure ports for optimal hose routing and transmitter fitting
• Double swivel hose for greater freedom of movement and comfort
• Easy one-hand-release DIN handwheel or over-moulded yoke handwheel
• Suitable for cold water use below 10°C / 50°F
• Tested for octopus use — EN250A to 60 metres, cold water
• Nitrox/oxygen compatible up to 40% O2
• Designed and manufactured in the UK

Apeks MTX-R Second Stage Features:

• Oversized breathing effort adjuster — easy to operate in cold water with gloves on
• Large self-flushing controllable purge button
• Large protective elastomer bumpers on the side and top for impact and scratch protection
• Reversible design for left or right-hand gas supply configuration
• Patented heat exchanger for improved cold-water breathing comfort
• Chrome-plated brass plate front cover with over-moulded elastomer for improved durability
• Comfo-bite mouthpiece for extended comfort
• Double swivel hose
• Flexible nylon braided hose for superior cold-water performance
• Designed and manufactured in the UK
• No single-use plastic in the packaging

Apeks MTX-R Octopus Features:

• Built to the same cold-water standard as the MTX-R primary second stage
• Highly visible and easy to operate in emergency situations
• Dependable backup air source tested for use in cold water

Gauge Options Features:

Miflex SPG fitted with 80cm Carbon HD hose

• Lightweight, compact and durable single pressure gauge
• Heavy-duty construction with ergonomic low-profile housing
• Comfortable grip and easy packing for travel
• Integrated attachment points at the top
• Supplied with durable Miflex 80cm hose
• Pressure gauge compliant with EN250

Miflex Double Console with Depth Gauge and SPG

• Compact double console with simple 1-2 gauge layout
• Combines pressure gauge and depth gauge in one unit
• Depth gauge provides useful backup in case of dive computer issues
• Bright, bold and easy to read at a glance
• Luminescent displays for improved visibility on night dives
• Ergonomic low-profile housing with comfortable grip
• Integrated attachment points at the top
• Lightweight and easy to pack for travel
• Pressure gauge compliant with EN250
• Depth gauge compliant with EN13319

Miflex Xtreme BCD Hose

A flexible, braided hose with standard 3/8" fitting and quick-release coupler, suitable for most BCDs, wings, and drysuits that use a standard QD connection. Every Miflex BCD hose QD fitting flow rate is tested to EN 1809:2014.

Want to dive deeper into the tech behind the EVX series? Read more on our blog and discover what makes these regulators a true game-changer.
