Aqualung Axiom BCD
Use this size chart to choose the most appropriate size for your Aqualung BCD. Please contact us if you have any questions or require further assistance with sizing.
Axiom i3 BCD
| Size | Height (ft/in) | Weight (lbs) | Waist (in) | Over the Shoulder (in) | Total Weight (lbs/kg) | Releaseable Weight (lbs/kg) | Lift (lbs) | Lift (N) |
|---|---|---|---|---|---|---|---|---|
| XS | 5'0" - 5’5" | 100 - 125 | 30 - 42 | 33 - 41 | 30 / 13.5 | 20 / 9 | 31 | 130 |
| S | 5’2" - 5’7" | 120 - 155 | 30 - 42 | 37 - 45 | 30 / 13.5 | 20 / 9 | 31 | 130 |
| M | 5’7" - 5’10" | 150 - 165 | 33 - 45 | 40 - 48 | 30 / 13.5 | 20 / 9 | 36 | 160 |
| ML | 5’10" - 6’0" | 160 - 190 | 35 - 47 | 42 - 50 | 30 / 13.5 | 20 / 9 | 41 | 180 |
| L | 6’0" - 6’2" | 180 - 210 | 38 - 50 | 44 - 52 | 40 / 18 | 30 / 13.5 | 44 | 190 |
| XL | 6’2" - 6’5" | 195 - 240 | 41 - 53 | 46 - 54 | 40 / 18 | 30 / 13.5 | 47 | 200 |
| XXL | 6’2" - 6’5" | 230 - 270 | 44 - 56 | 46 - 54 | 40 / 18 | 30 / 13.5 | 54 | 230 |
Axiom BCD
| Size | Height (ft/in) | Weight (lbs) | Waist (in) | Over the Shoulder (in) | Total Weight (lbs/kg) | Releaseable Weight (lbs/kg) | Lift (lbs) | Lift (N) |
|---|---|---|---|---|---|---|---|---|
| XS | 5'0" - 5’5" | 100 - 125 | 30 - 42 | 33 - 41 | 30 / 13.5 | 20 / 9 | 27 | 120 |
| S | 5’2" - 5’7" | 120 - 155 | 30 - 42 | 37 - 45 | 30 / 13.5 | 20 / 9 | 27 | 120 |
| M | 5’7" - 5’10" | 150 - 165 | 33 - 45 | 40 - 48 | 30 / 13.5 | 20 / 9 | 35 | 150 |
| ML | 5’10" - 6’0" | 160 - 190 | 35 - 47 | 42 - 50 | 30 / 13.5 | 20 / 9 | 38 | 160 |
| L | 6’0" - 6’2" | 180 - 210 | 38 - 50 | 44 - 52 | 40 / 18 | 30 / 13.5 | 39 | 170 |
| XL | 6’2" - 6’5" | 195 - 240 | 41 - 53 | 46 - 54 | 40 / 18 | 30 / 13.5 | 43 | 190 |
| XXL | 6’2" - 6’5" | 230 - 270 | 44 - 56 | 46 - 54 | 40 / 18 | 30 / 13.5 | 48 | 210 |
Outlaw BCD / Rogue BCD / Omni BCD
| Size | Height (ft/in) | Weight (lbs) | Waist (in) | Over the Shoulder (in) | Total Weight (lbs/kg) | Releaseable Weight (lbs/kg) | Lift (lbs) | Lift (N) |
|---|---|---|---|---|---|---|---|---|
| S | 4’8" - 5’7" | 90 - 155 | 29 - 43 | 33 - 42 | 20 / 9 (optional) | 20 / 9 (optional) | 25 | 110 |
| M | 5’7" - 6’0" | 150 - 210 | 32 - 48 | 40 - 49 | 20 / 9 (optional) | 20 / 9 (optional) | 25 | 110 |
| L | 5’10" - 6’5" | 200 - 270 | 42 - 58 | 44 - 53 | 20 / 9 (optional) | 20 / 9 (optional) | 25 | 110 |
Pearl BCD
| Size | Height (ft/in) | Weight (lbs) | Waist (in) | Over the Shoulder (in) | Total Weight (lbs/kg) | Releaseable Weight (lbs/kg) | Lift (lbs) | Lift (N) |
|---|---|---|---|---|---|---|---|---|
| XS | 4’8" - 5’5" | 90 - 125 | 25 - 37 | 32 - 38 | 20 / 9 | 20 / 9 | 23 | 100 |
| S | 5’2" - 5’7" | 120 - 154 | 27 - 42 | 33 - 39 | 26 / 12 | 20 / 9 | 28 | 120 |
| M | 5’5" - 5’10" | 135 - 180 | 30 - 45 | 35 - 41 | 30 / 13.5 | 20 / 9 | 32 | 140 |
| ML | 5’7" - 6’0"+ | 175 - 210 | 35 - 50 | 35 - 41 | 30 / 13.5 | 20 / 9 | 44 | 190 |
Pro HD BCD and Pro HD Compact
| Size | Height (ft/in) | Weight (lbs) | Waist (in) | Over the Shoulder (in) | Total Weight (lbs/kg) | Releaseable Weight (lbs/kg) | Lift (lbs) | Lift (N) |
|---|---|---|---|---|---|---|---|---|
| XS | 5'0" - 5’5" | 100 - 125 | 25 - 37 | 32 - 38 | 30 / 13.5 | 20 / 9 | 24 | 110 |
| S | 5’2" - 5’7" | 120 - 155 | 27 - 42 | 34 - 40 | 30 / 13.5 | 20 / 9 | 27 | 120 |
| M | 5’7" - 5’10" | 150 - 165 | 30 - 45 | 39 - 45 | 30 / 13.5 | 20 / 9 | 29 | 120 |
| ML | 5’10" - 6’0" | 160 - 190 | 32 - 47 | 41 - 47 | 30 / 13.5 | 20 / 9 | 33 | 140 |
| L | 6’0" - 6’2" | 180 - 210 | 35 - 50 | 43 - 49 | 40 / 18 | 30 / 13.5 | 44 | 190 |
| XL | 6’2" - 6’5" | 195 - 240 | 37 - 52 | 45 - 51 | 40 / 18 | 30 / 13.5 | 55 | 240 |
Soul i3 BCD / Soul BCD
| Size | Height (ft/in) | Weight (lbs) | Waist (in) | Over the Shoulder (in) | Total Weight (lbs/kg) | Releaseable Weight (lbs/kg) | Lift (lbs) | Lift (N) |
|---|---|---|---|---|---|---|---|---|
| XXS | 4’8" - 5’4" | 90 - 125 | 26 - 38 | 32 - 38 | 30 / 13.5 | 20 / 9 | 22 | 100 |
| XS/SM | 5’2" - 5’7" | 110 - 145 | 30 - 42 | 33 - 39 | 30 / 13.5 | 20 / 9 | 28 | 120 |
| MD | 5’5" - 5’10" | 140 - 165 | 33 - 45 | 35 - 41 | 30 / 13.5 | 20 / 9 | 32 | 140 |
| ML | 5’10" - 6’0"+ | 160 - 190 | 38 - 50 | 35 - 41 | 30 / 13.5 | 20 / 9 | 42 | 180 |
Wave BCD
| Size | Height (ft/in) | Weight (lbs) | Waist (in) | Over the Shoulder (in) | Total Weight (lbs/kg) | Releaseable Weight (lbs/kg) | Lift (lbs) | Lift (N) |
|---|---|---|---|---|---|---|---|---|
| 3XS | - | - | 24 - 36 | 25 - 31 | N/A | N/A | 18 | 80 |
| 2XS | - | - | 24 - 36 | 32 - 38 | N/A | N/A | 18 | 80 |
| XS | 5’0-5’5” | 100 - 125 | 25 - 37 | 32 - 38 | N/A | N/A | 24 | 110 |
| S | 5’2”-5’7” | 120 - 155 | 27 - 42 | 34 - 40 | N/A | N/A | 27 | 120 |
| M | 5’7”-5’10” | 150 - 165 | 30 - 45 | 39 - 45 | N/A | N/A | 29 | 120 |
| ML | 5’10”-6’0” | 160 - 190 | 32 - 47 | 41 - 47 | N/A | N/A | 33 | 140 |
| L | 6’0”-6’2” | 180 - 210 | 35 - 50 | 43 - 49 | N/A | N/A | 44 | 190 |
| XL | 6’2”-6’5” | 195 - 240 | 37 - 52 | 45 - 51 | N/A | N/A | 55 | 240 |
Zuma BCD
| Size | Height (ft/in) | Weight (lbs) | Waist (in) | Over the Shoulder (in) | Total Weight (lbs/kg) | Releaseable Weight (lbs/kg) | Lift (lbs) | Lift (N) |
|---|---|---|---|---|---|---|---|---|
| XXS/XS | 4’8" - 5’5" | 90 - 125 | 26 - 43 | 32 - 44 | 20 / 9 | 20 / 9 | 22 | 90 |
| SM/M | 5’2" - 5’10" | 120 - 165 | 28 - 45 | 36 - 48 | 20 / 9 | 20 / 9 | 22 | 90 |
| ML/L | 5’10" - 6'2" | 160 - 210 | 33 - 50 | 39 - 51 | 20 / 9 | 20 / 9 | 34 | 150 |
| XL/XXL | 6’2" - 6’5" | 195 - 270 | 39 - 56 | 42 - 54 | 20 / 9 | 20 / 9 | 34 | 150 |

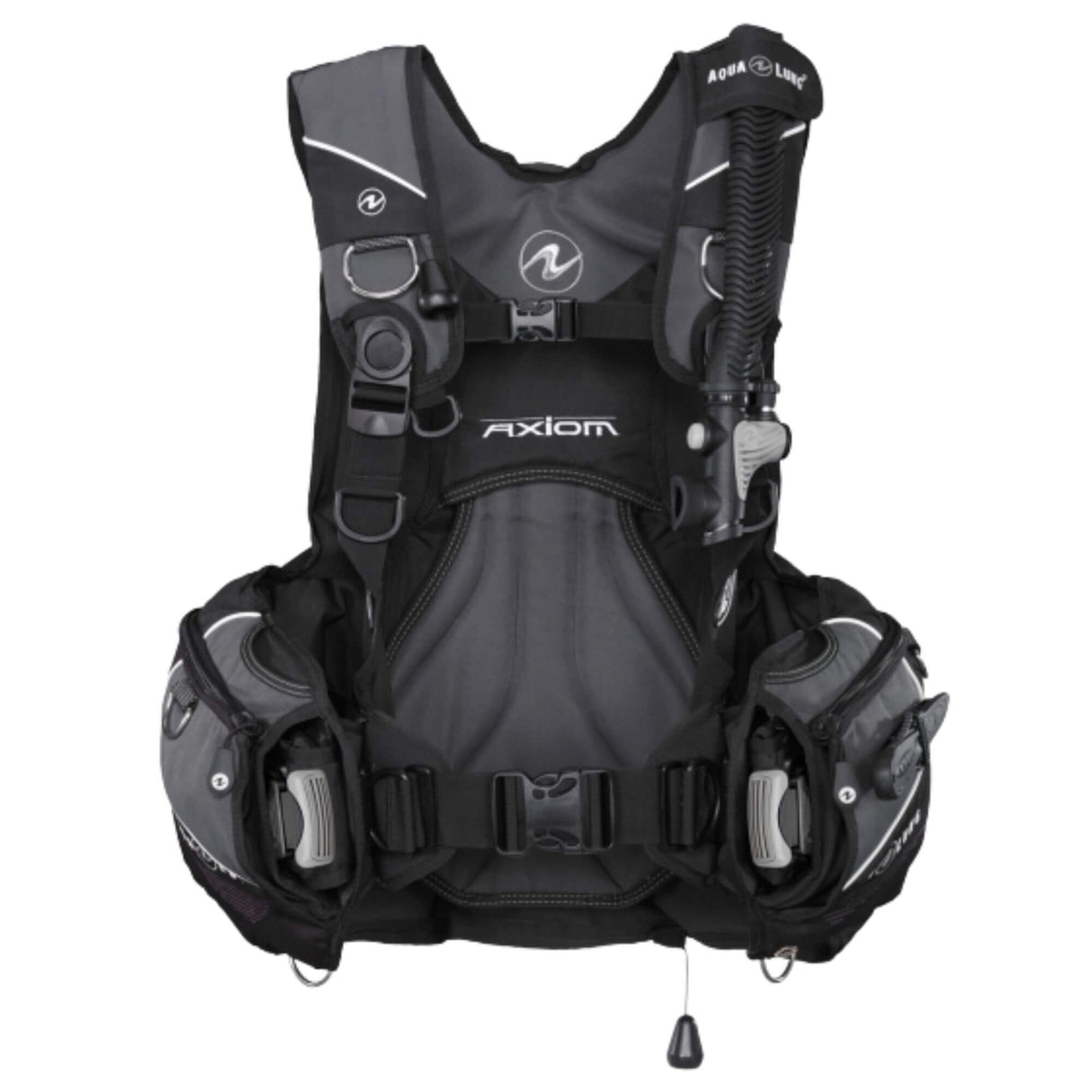

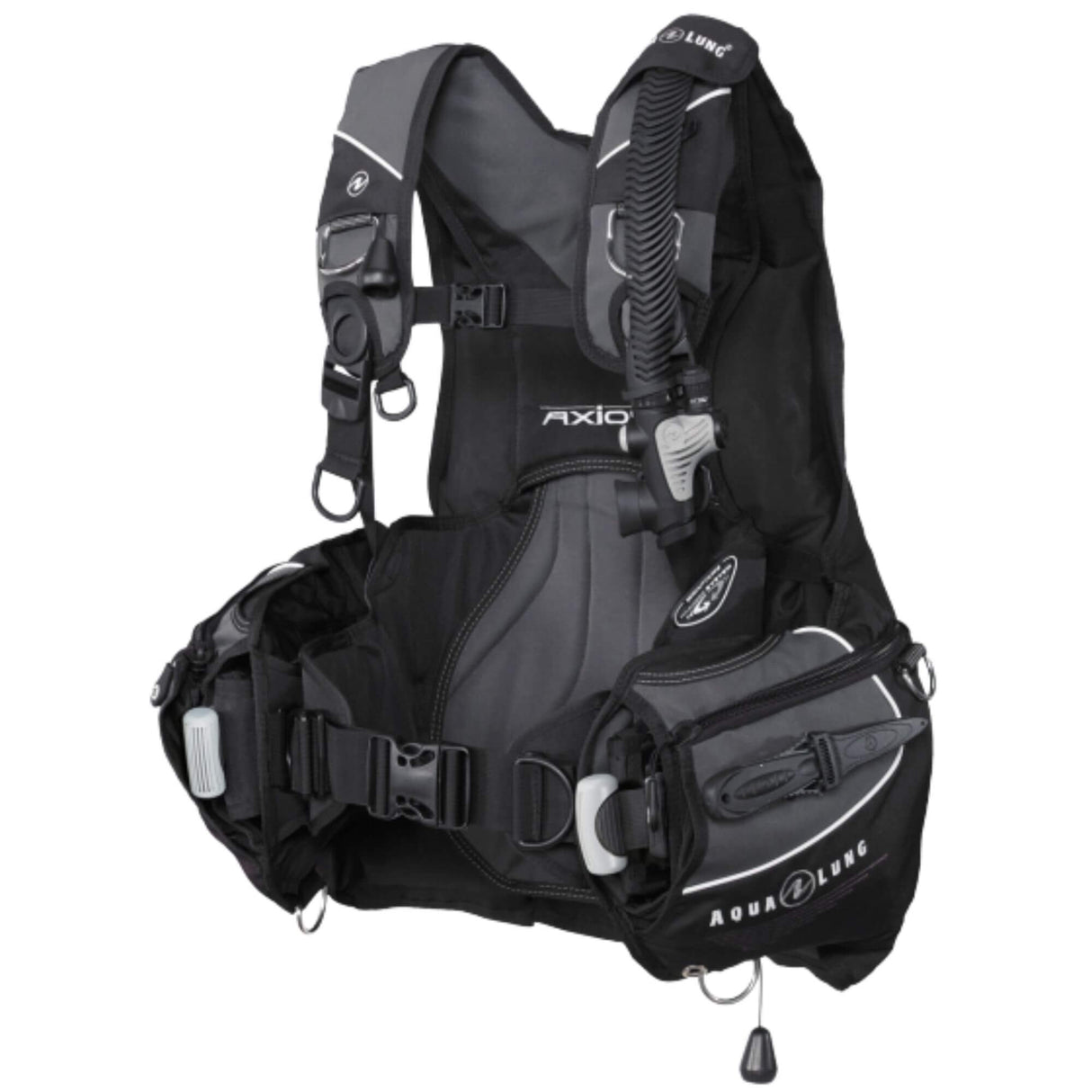

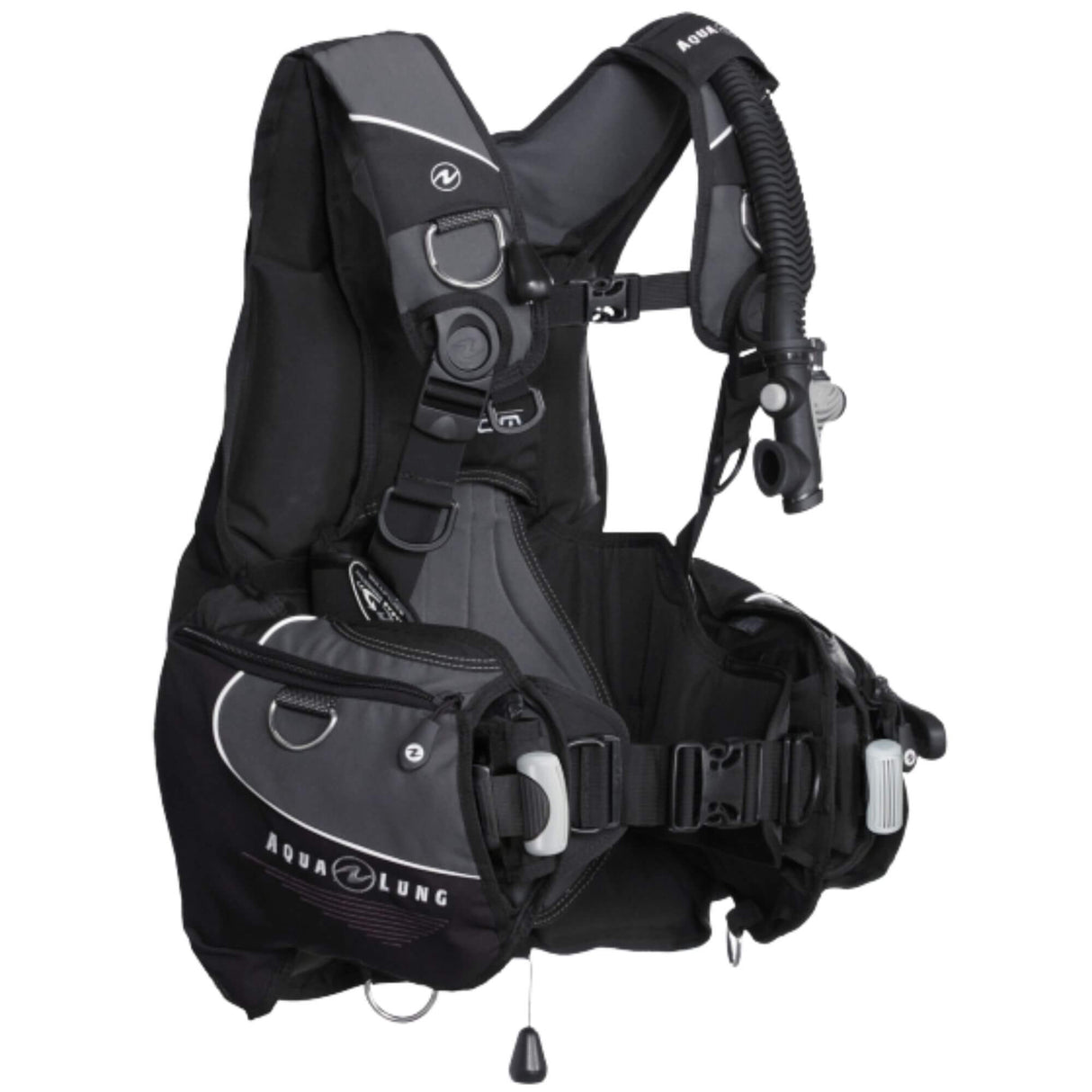

The Aqualung Axiom [BC1320110] is a recreational jacket BCD that genuinely delivers on the comfort promise. The headline feature is Aqualung's Wrapture™ harness system — a wrap-around design that distributes the load of your cylinder so evenly that you can actually stand upright between dives without the usual hunched-over tank shuffle. The cylinder stays vertical and pulled in close, which also improves your profile in the water. If you've ever worn a jacket that felt like it was fighting you on the surface, the Axiom is a noticeable step up.
The air cell is super-streamlined for a jacket-style BCD, keeping bulk down without sacrificing lift capacity — which scales sensibly from 27 lbs (XS/SM) up to 48 lbs (XXL). Tank security comes from Aqualung's GripLock™ tank band, which locks positively and doesn't creep. Weight integration uses the SureLock II system — a tried-and-tested integrated weight system with ditchable pockets and a dedicated non-ditchable capacity, so you can split your ballast however your training dictates.
Day-to-day usability is well thought through: large pull bobs on the dump valves are easy to locate and grip even with gloves on, the right shoulder pull dump is intuitive to find, the chest strap is fully adjustable, and there's a rolled neck collar for surface comfort. Two zippered utility pockets, six D-rings (five stainless, one plastic), and a knife attachment point on the left lobe round out the practical spec. Available in Black/Charcoal.
The Axiom can also be ordered with an Airsource 3 regulator pre-installed — Aqualung's combination second stage and power inflator, for divers who want a streamlined setup and an integrated backup air source.
Features:
- Wrapture™ harness system — wrap-around design distributes cylinder weight evenly; allows upright posture on the surface and keeps the tank vertical and close in the water
- GripLock™ tank band — Aqualung's proprietary cam band system for secure, reliable cylinder retention
- SureLock II integrated weight system — ditchable weight pockets with secure release; dedicated non-ditchable capacity
- Streamlined ADV-style air cell — jacket wrap-around construction with a slim profile for reduced drag
- Large pull bobs on all dump valves — easy to locate and operate with gloves
- Right shoulder pull dump — intuitive positioning for fast venting
- Powerline inflator with flat dump valves
- Adjustable chest strap for personalised fit
- Rolled neck collar for surface comfort
- Knife attachment point on left lobe
- 6 D-rings — 5 stainless steel, 1 plastic
- 2 zippered utility pockets
- Available with Airsource 3 regulator pre-installed (ordered separately) — combines high-performance second stage with breathable power inflator
- Colour: Black/Charcoal
- Lift Capacity: XS: 27 lb / 120 N | SM: 27 lb / 120 N | MD: 35 lb / 150 N | ML: 38 lb / 160 N | LG: 39 lb / 170 N | XL: 43 lb / 190 N | XXL: 48 lb / 210 N
